File for Each Board

With this option set, a separate file will be created for each board, including both SVG or DXF exports. The export will create a directory with a name matching the model’s. An SVG or DXF file will be exported for each mapped board with a name matching the board type and instance number.

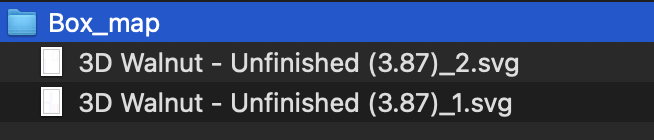

Shown below is the resulting SVG file export for two mapped boards. DXF exports will have an identical structure.
