Creating Multiple Maps

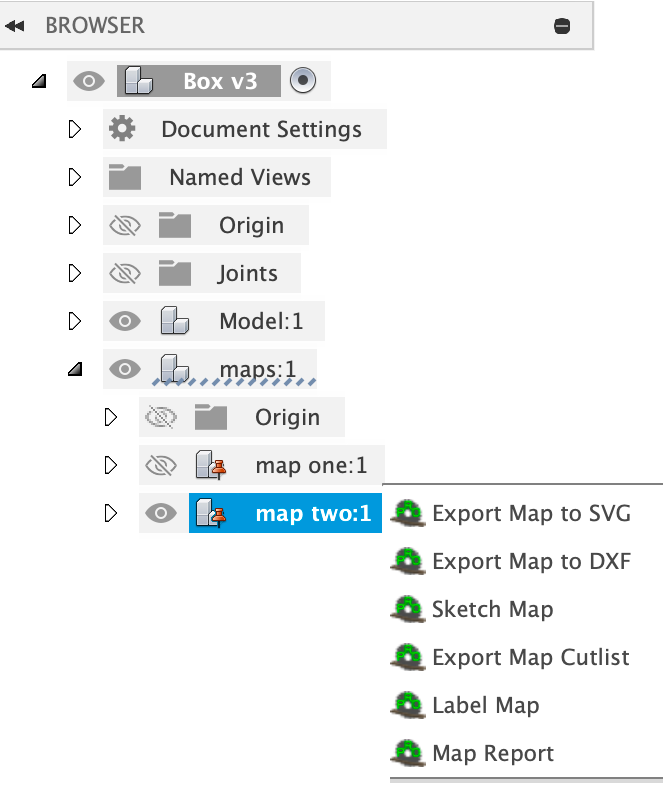

Maps are created under the component maps in the browser tree. With each run of MBP the existing visible map is deleted. You can hide a map to prevent it from being deleted by turning off the visibility icon allowing multiple maps to be saved with the model. The default map name is map which can be rename to identify it’s content, i.e. a material type or an assembly name.

The additional maps are saved when the model is saved to the Fusion cloud. You can remove a map by turning on the visibility icon before you rerun MBP. All post-mapping tasks are available on the saved maps and changes to each map are saved when the model is saved.

A new Manufacturing Model task will create a separate manufacturing model for the map it is launched on. Rearranging components on the map within or between boards in the design workspace will be reflected in the created manufacturing model.

You can switched between saved maps using the visibility icon next to each map component.

An alternate way to create and view different maps is to use Fusion’s Undo list.

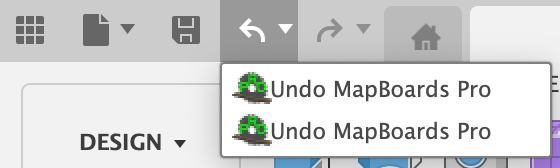

With each created map a single entry is created in the Undo list, Undo MapBoards Pro. You can roll back-and-forth through the different maps by doing an Undo (Cmd-Z), Redo (Shift Cmd-Z), …
