Rearranging Map

Bodies in the map created can be manually flipped, rotated and moved in three ways.

Flip Body

Note

Flipping bodies must be done before any other movement.

  • Press Escape to clear any selections

  • Select a body in map

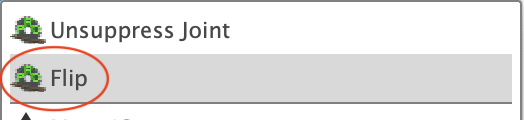

  • Right click, and click Flip

../../_images/flip.png
Rotate and Move

Note

Flipping bodies must be done before any other movement.

Run Label Map task on map object to correct labeling after move.

To move body on map

  • Press Escape to clear any selections

  • Select a body in map

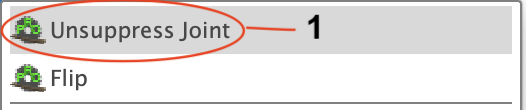

  • Right click and select Unsuppress Joint (1)

  • Double click the displayed joint (2)

  • Rotate or Move within or between the boards

  • Press Enter to complete move

  • Right click body and select Suppress Joint (3)

../../_images/Unsuppress.png
../../_images/DriveJoint.png
../../_images/Suppress.png
Simple Move by Dragging

Note

A simple approach can be used if you do not wish to rotate bodies.

  • Click Top on the view cube to align the top facing forward. This assumes the Map Orientation option matches the user preferences for modeling orientation.

  • Flip bodies if desired

  • Press Escape to clear any selections

  • Select and drag a body within or between the boards
