Cutlist

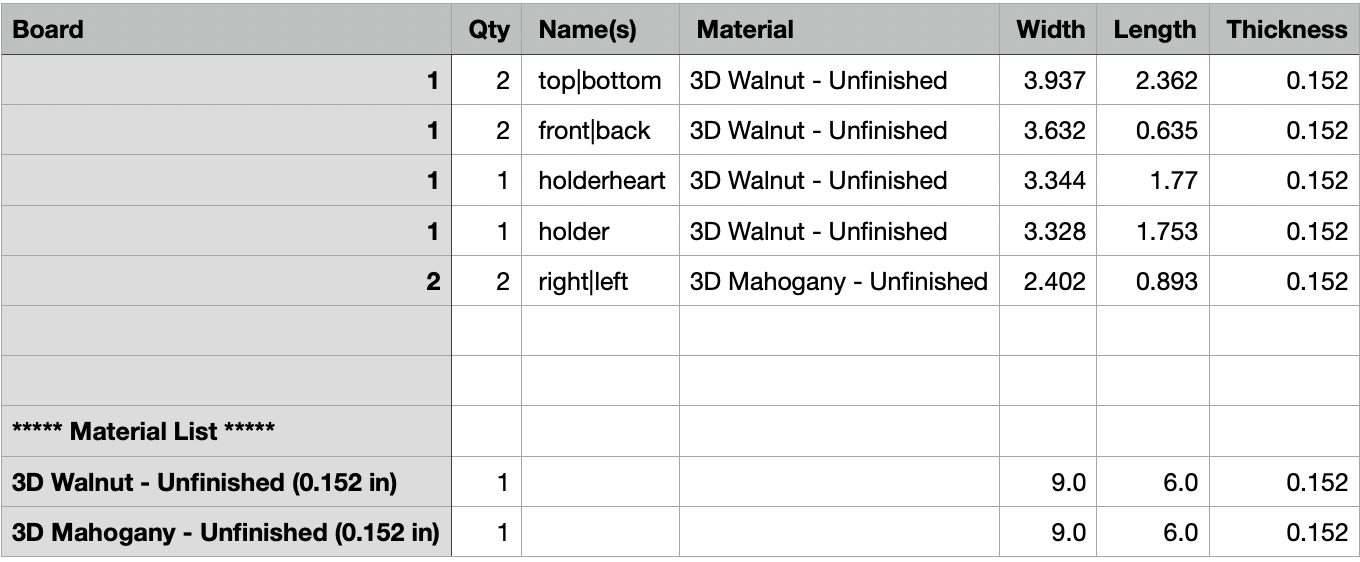

When set a csv file is created containing the following:

  • A table with all placed components that includes Board No, Quantity, Component name, Material Type, Width, Length and Thickness.

  • A lumber list required to manufacture the model which includes quantity and dimensions for each material type.

Selecting the Group Common Dimensions option will gather components with match dimensions into a single line incrementing the quantity.
