Line Weight

This setting controls the thickness of the lines in an SVG export. The Line Weight setting represents the thickness of the lines as a floating point number in the default units. The value can be very small for thin lines to very large for thick lines.

This together with line color provide more control for laser cutting.

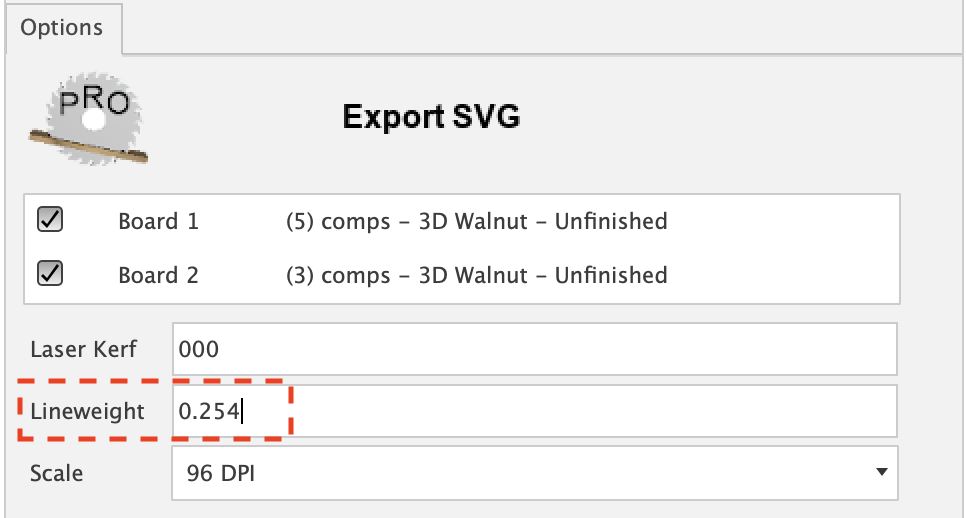

Shown below is a Linewright of 0.254 mm for the task Export Map to SVG.
