Include Profiles

Choose these options to include profiles in the flat panels created for the SVG or DXF exports. These exports require at least one profile to be selected otherwise a warning popup will be display requiring a selection before you can proceed.

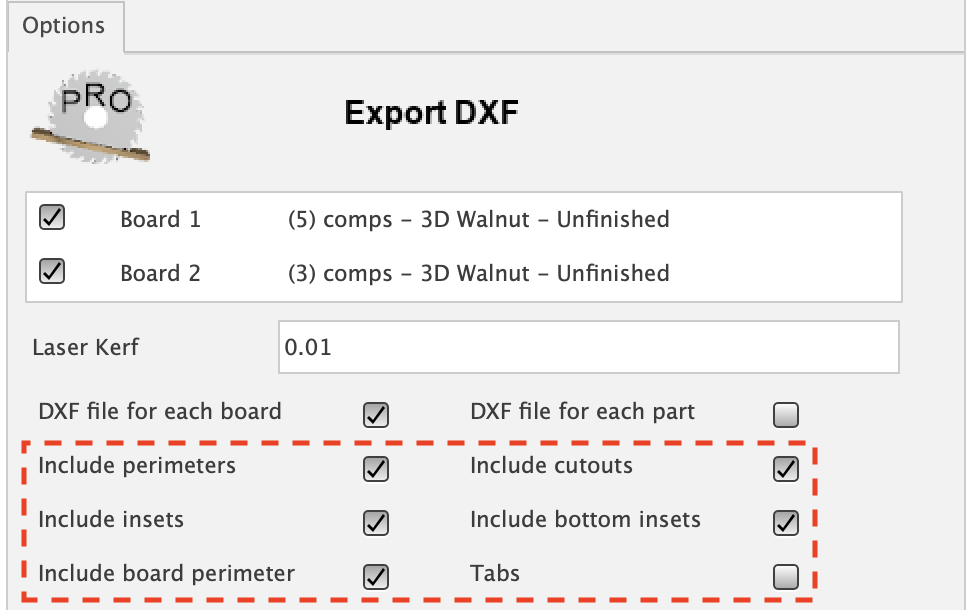

Shown below the profile types, Cutout, Insets, Board or Perimeter can be included or excluded in the exported map as a DXF file.
