File for Each Board

With this option set a separate file will be created for each board, for both SVG or DXF exports. The export will create a directory with a name matching the model name. An exported file, SVG or DXF, will be exported for each mapped board with a name matching the board type and a board instance number.

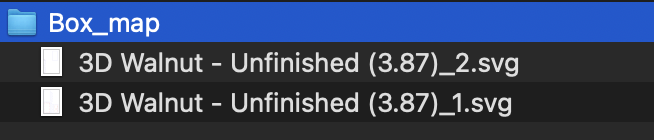

Showed below is the resulting SVG file export for two mapped boards. DXF exports would have an identical structure but with DXF files.
